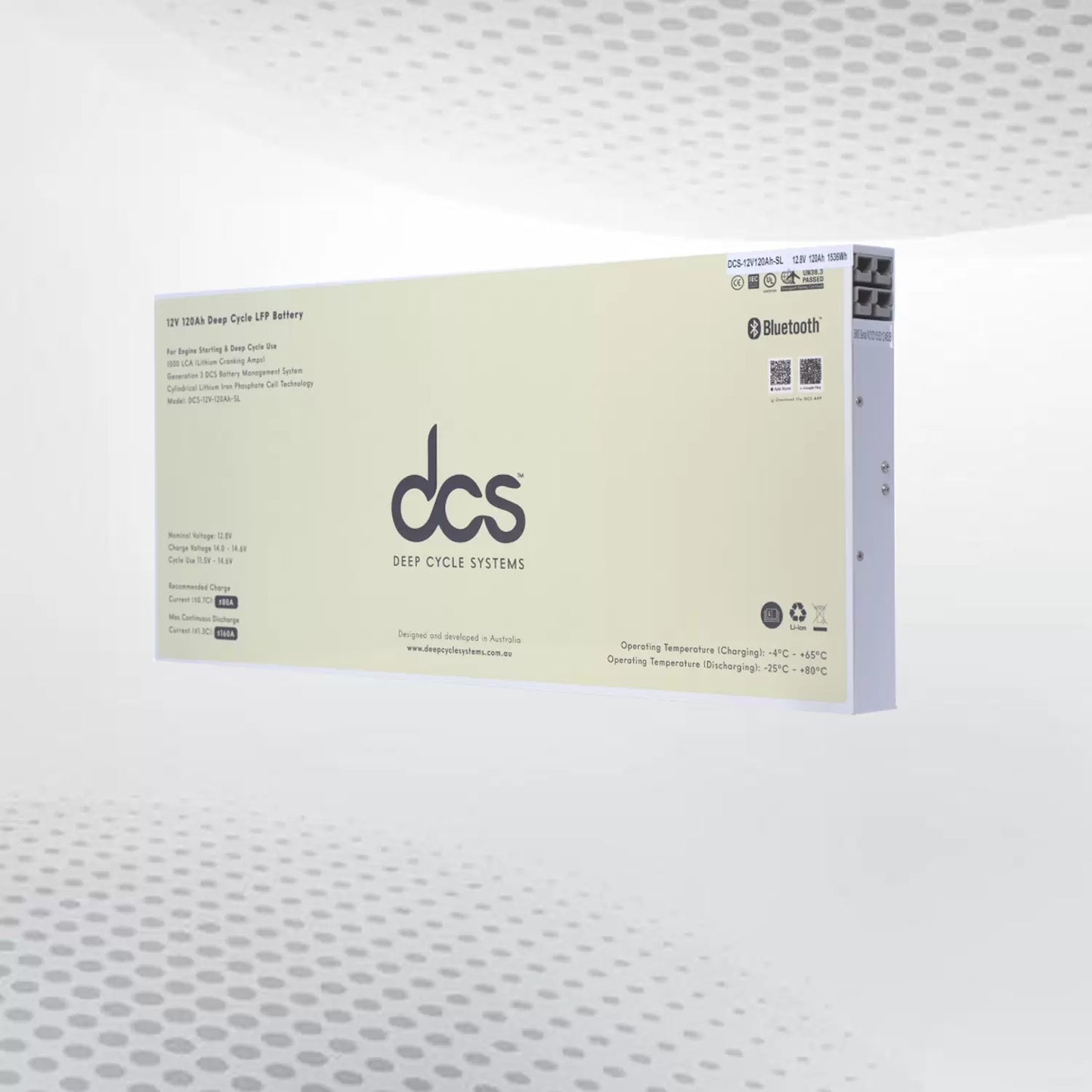

DCS 12V 120AH Super Slimline Lithium Battery W/Bluetooth
DCS 12V 120AH Super Slimline Lithium Battery W/Bluetooth
Couldn't load pickup availability
DCS Batteries are the ideal replacement & upgrade from AGM, Gel or other lead acid batteries for any application. DCS gives you the ability to upgrade your current batteries to lithium ion technology that can deliver a minimum of 2500 cycles and has tremendous advantages in weight, performance, reliability and service life compared to that of traditional lead acid batteries.

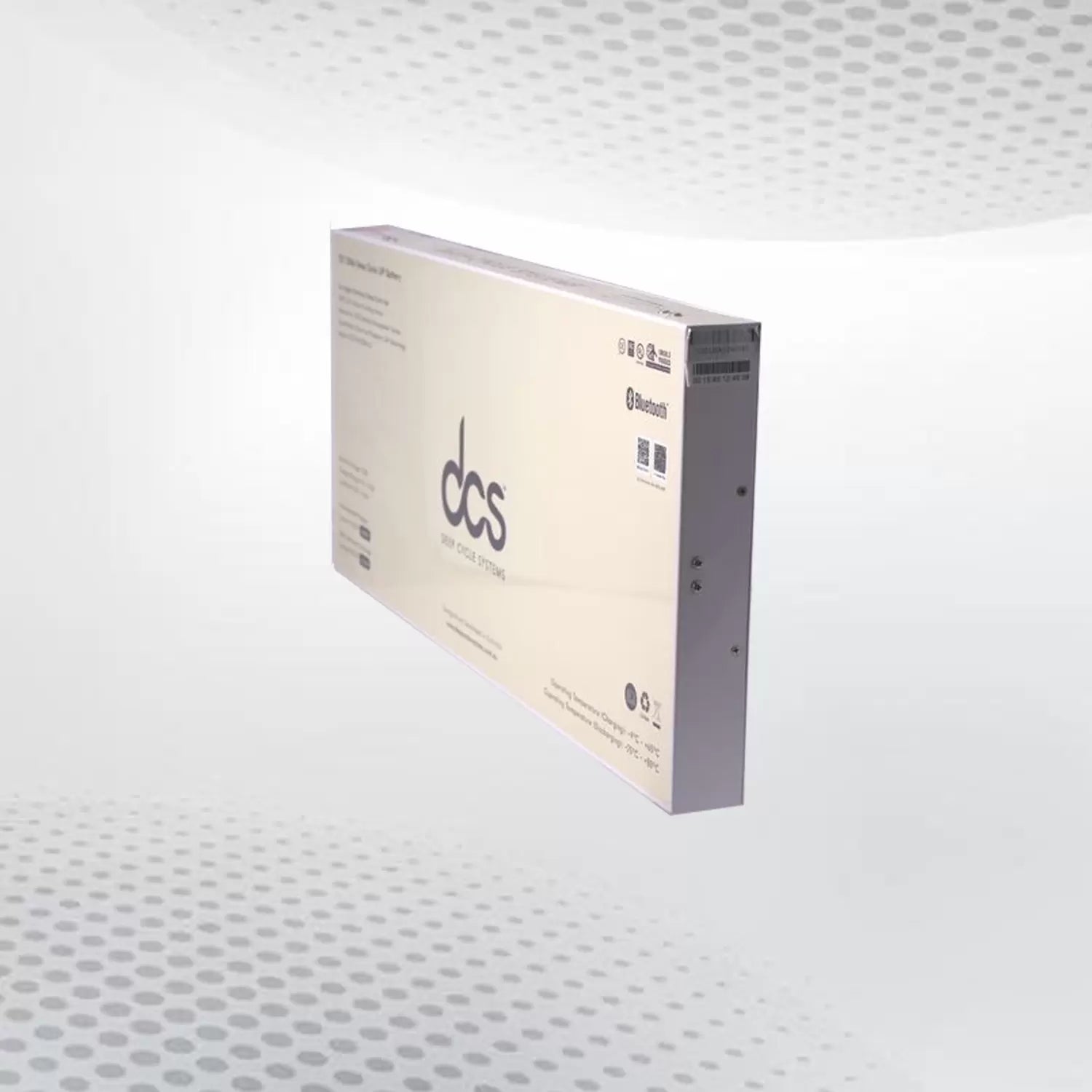

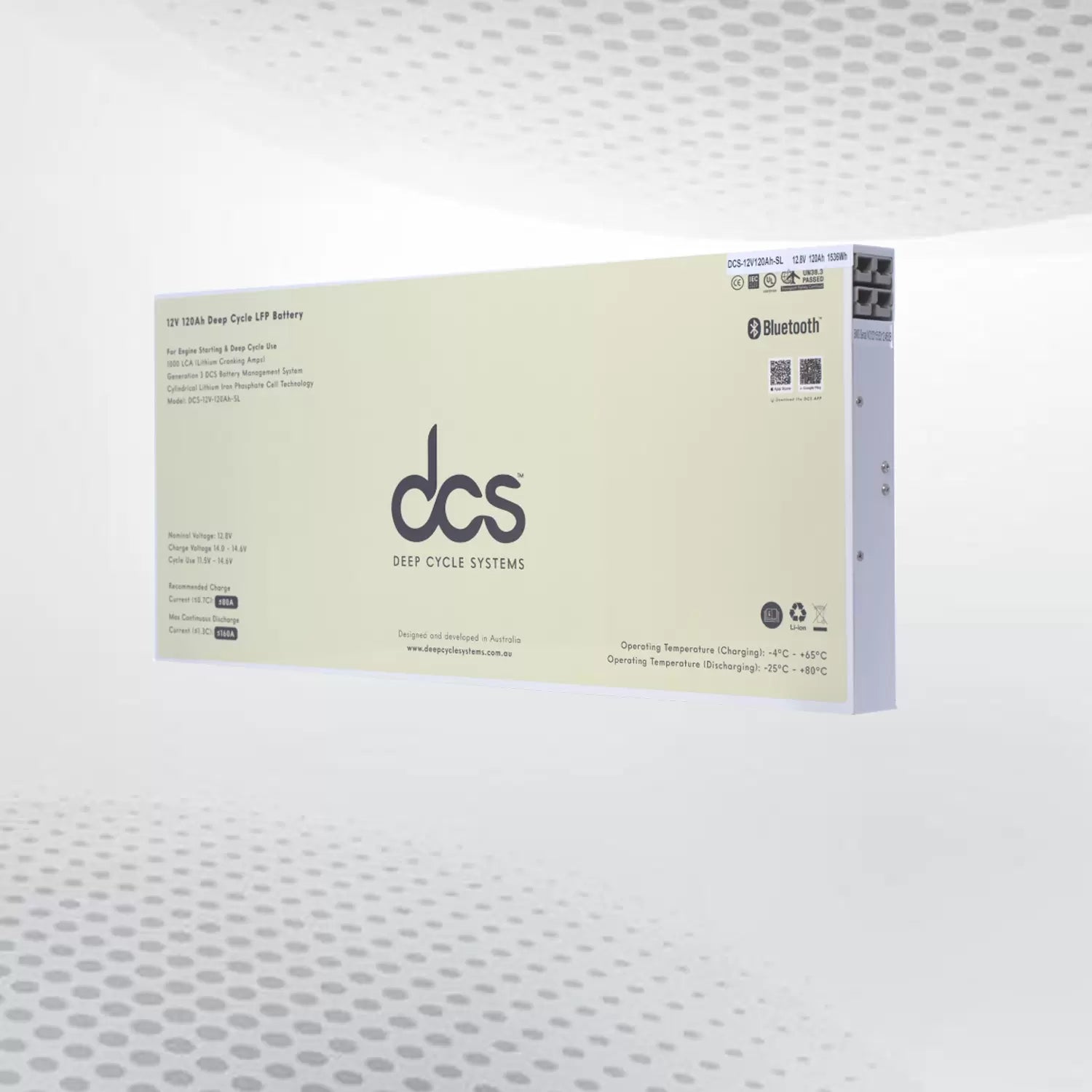

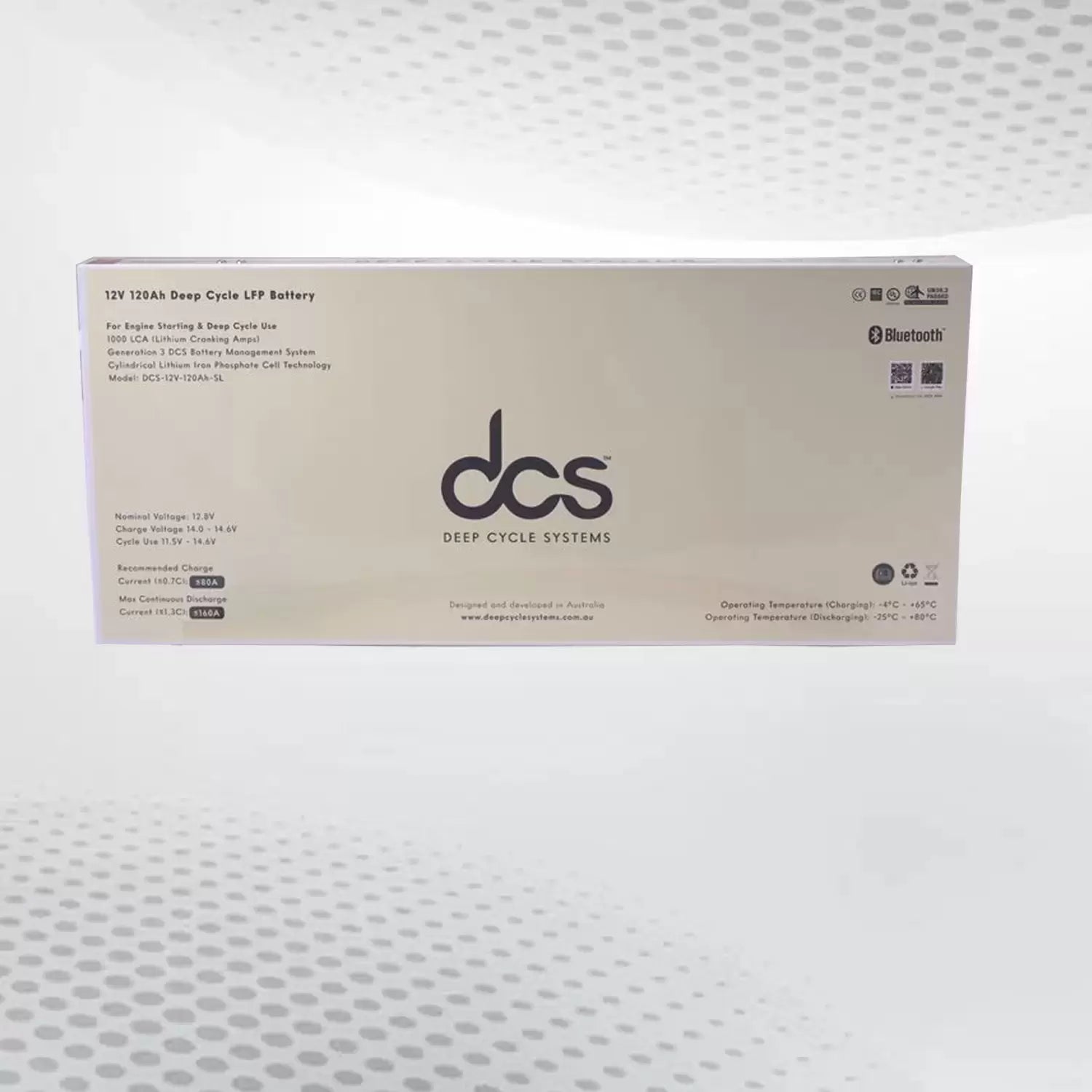

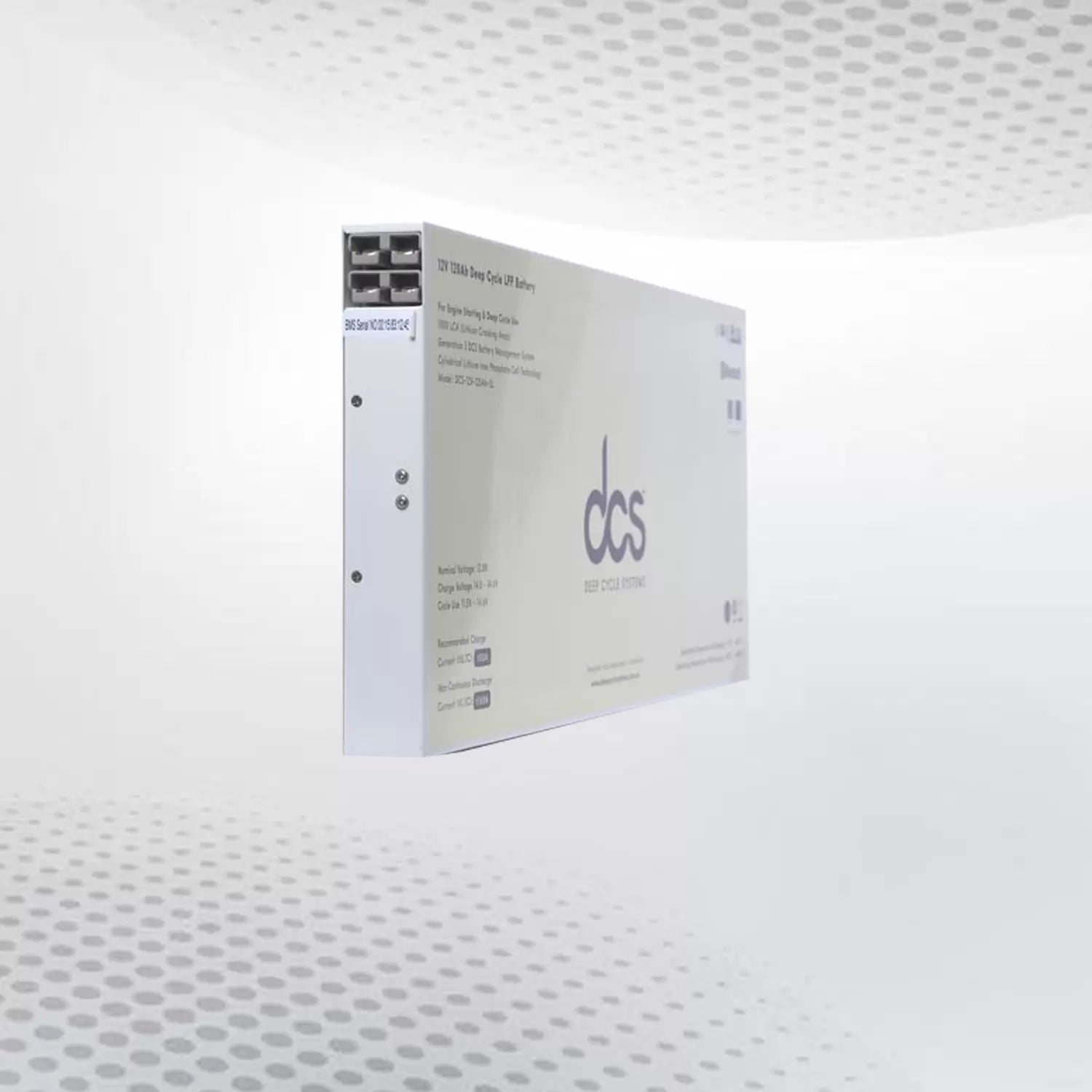

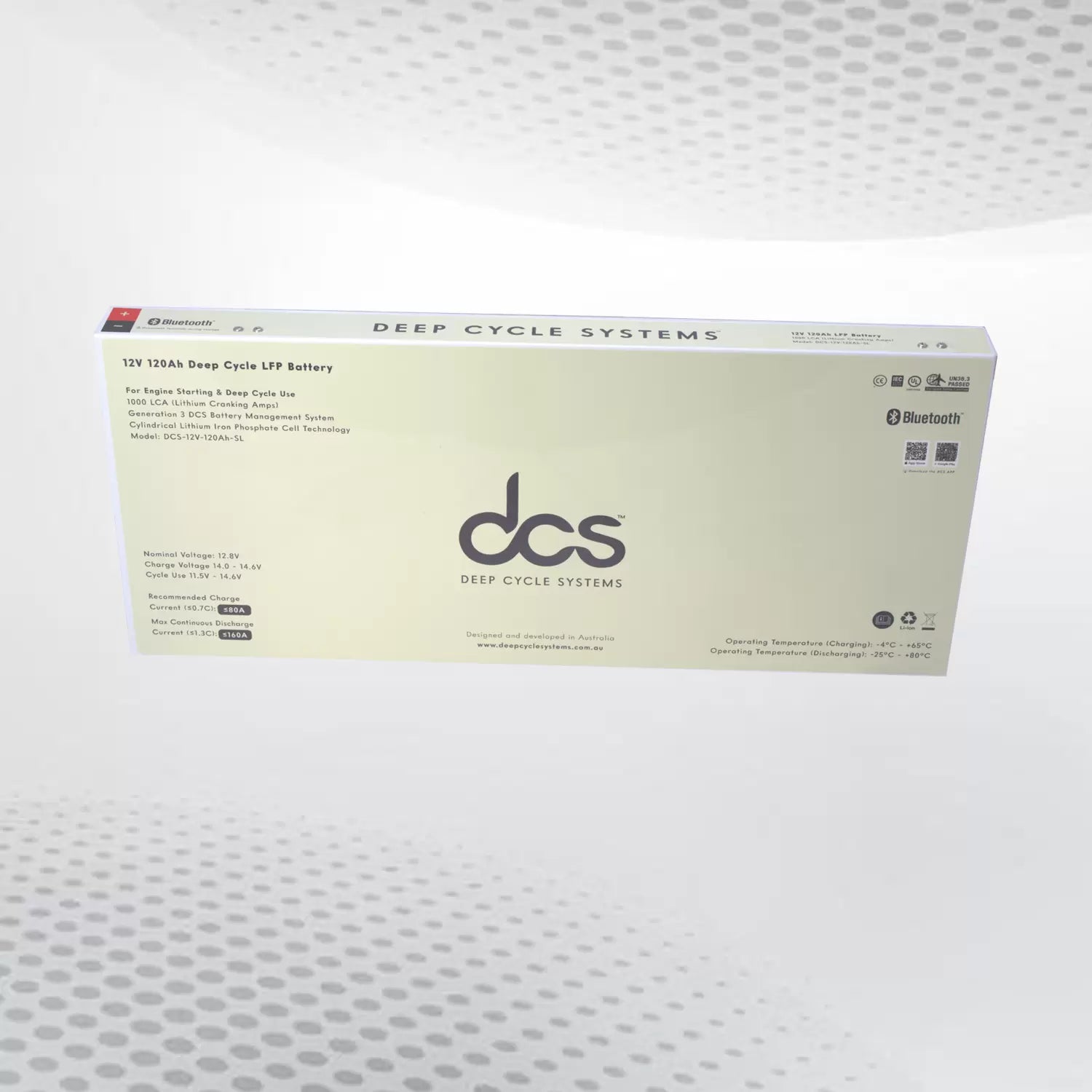

This Super Slim Lithium Battery is perfect for under false floor, behind rear seat or hidden applications. Being only 50mm thick its one of the slimmest batteries on the market.
| Specifications: | 120AH |
|---|---|
| Nominal Voltage | 12.8V |
| Nominal Capacity (1Hr) | 120Ah |
| Case Dimensions (L x W x H) | 690mm x 50mm x 305mm |
| Weight | 21.40 Kg |
| Cycling voltage | 11.5 ~ 14.6V |
| Charge voltage | 14.0 ~ 14.6V |
| Float Voltage | 13.5 ~ 13.7V |
| Maximum Charge Current | 120A |
| Recommended Charge Current | ≤80A |
| Maximum Discharge Current | ≤160A |
| DCS BMS (internal) | DCS active cell management system, over/under voltage, over current charge/discharge, low/high temperature protections, satisfies the AS/NZS 3001.2:2022 lithium battery standards |
| Cell Chemistry | DCS 3.2V 20Ah Cylindrical LFP (LiFePO4) |
| Cycle Performance | 4000 Cycles @ 100% DOD ≥ 80% Capacity Retention @ 25°C |
| Cell Pack Design | Laser Welded Aluminium With Thermal Interface Resin |
| LCA | 1000 |
| Ingress Protection | IP53 |
| Case | Metal With Pearlescent White Finish |
| Operating temp Range | -25°C to 80°C |

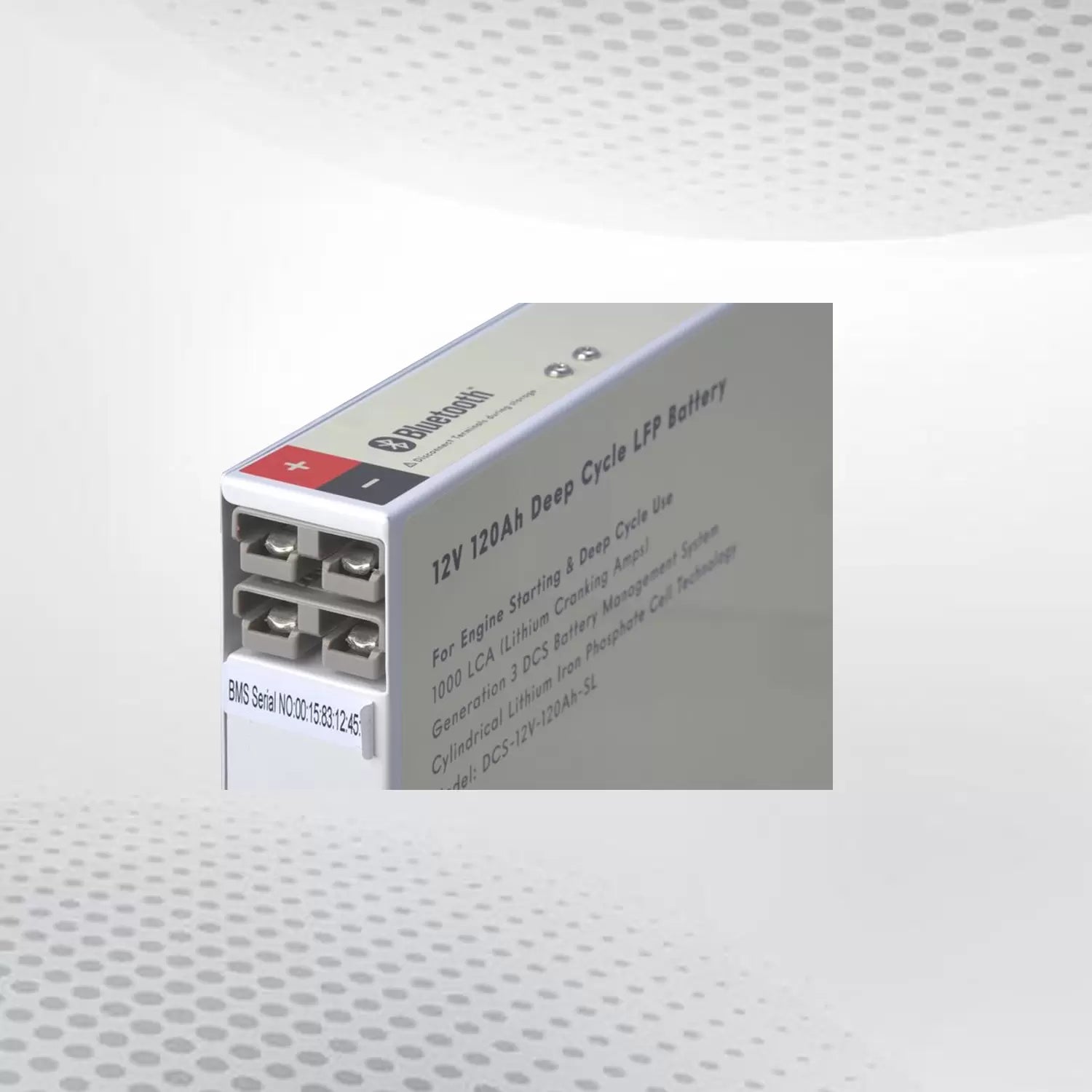

| Terminals | Twin 120A Anderson Plugs |
| Parallel Connections | Up To 10 |
| Series Connections | No |
| Warranty | 5 years |
| Certifications | UN 38.3, UL 1642, IEC 62133 & 62619, CE |
All DCS batteries now feature our comprehensive Bluetooth System available on both Android and Apple operating systems shows a lot of cool things.
– Cell status showing real time cell balancing operation
– BMS MOSFET temperature ( great info when your winching or running a large inverting load or your trolling motor to know how hard your pushing the electronics ).
– SOC% estimate (using impedance tracking – the App learns the SOC after the first 10 cycles)
– Battery pack voltage and cycle count
– Amp meter – showing charge and discharge current
– Connectivity distance up to 10m
– Now there is no need to install battery monitors or shunts in boats, campers or vehicles. You have all the info you need at your finger tip.
– The SOC estimate is accurate on single batteries, the more batteries that are expanded in parallel the less accurate the SOC becomes.
– This free application provides the perfect tell-tale about the battery packs state of health as it ages
– Assists installers & integrators to quickly diagnose any system issues
Notes
- All Lithium Batteries are classed as dangerous goods and can only be freighted via road freight.
- Comes with X4 fixing brackets
- Requires external DC/DC charger for vehicle applications. Check out our Redarc BCDC1225D for external/engine bay applications or Redarc BCDCN1225 for in vehicle applications.
