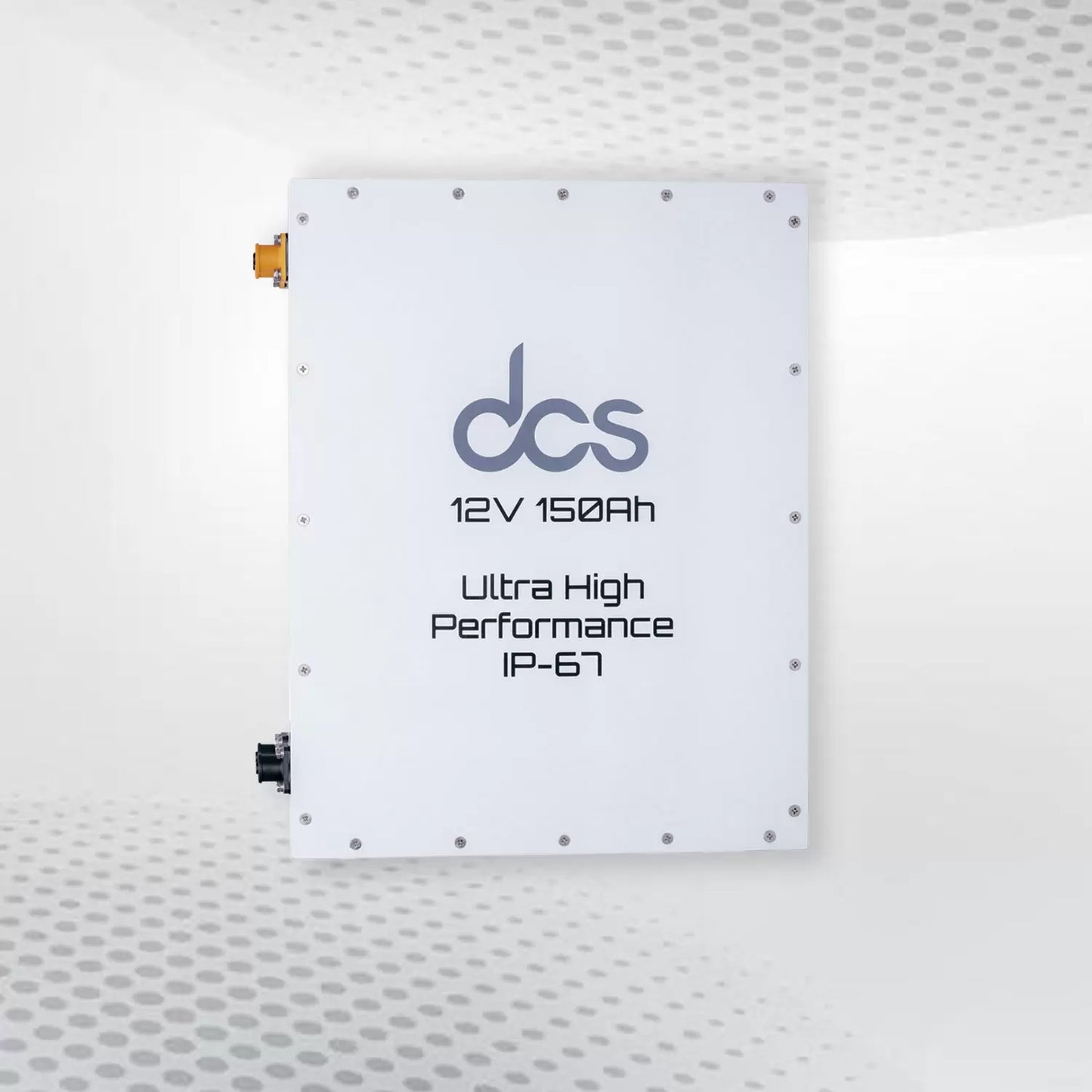

DCS 12V 150AH IP-67 Lithium Battery W/Bluetooth

DCS 12V 150AH IP-67 Lithium Battery W/Bluetooth

Regular price $2,299.00 AUD
Regular price $2,599.00 AUD Sale price $2,299.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.



DCS Batteries are the ideal replacement & upgrade from AGM, Gel or other lead acid batteries for any application.  DCS gives you the ability to upgrade your current batteries to lithium ion technology that can deliver a minimum of 2500 cycles and has tremendous advantages in weight, performance, reliability and service life compared to that of traditional lead acid batteries.

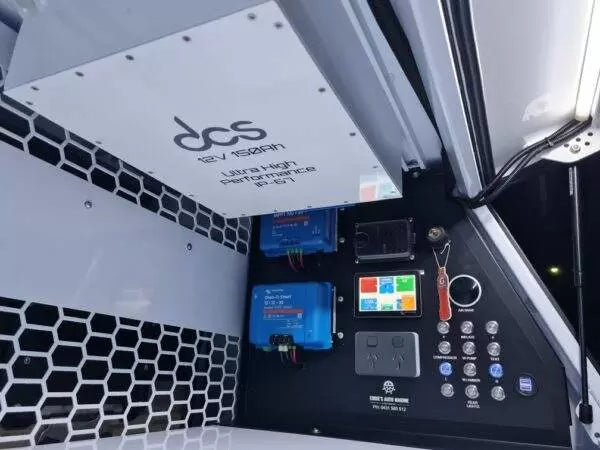

This Lithium Battery is perfect for Motor Home or Canopy Mounting and is IP67 rated for more harsh environment applications.



Specifications:
Nominal Voltage 12.8V
Nominal Capacity (20Hr) 150Ah
Case Dimensions (L x W x H) 420mm x 325mm x 125mm
Weight 24.0Kgs
Cycling voltage 12.8V ~ 14.6V
Charge voltage 13.7V ~ 14.6V
Float Voltage 13.5V ~ 14.0V
Maximum Charge Current 150A
Recommended Charge Current ≤130A
Maximum Discharge Current ≤250A
DCS BMS (internal) DCS active cell management system, over/under voltage, over current charge/discharge, low/high temperature protections
Cell Chemistry DCS 3.2V 5.0 – 7.2Ah Cylindrical (LifePO4)
Cycle Performance 2500 Cycles @ 100% DOD
LCA 1200A
Ingress Protection IP67 (Fully submersible for up to 30mins)
Case Metal with white pearlescent finish
Operating temp Range -25 to +110 degrees C
Terminals Push-lock terminals suitable for 50/35mm cables
Parallel Connections YES
Series Connections NO
Warranty 5 years
Certifications UN 38.3, UL 1642, IEC 62133 & 62619, CE

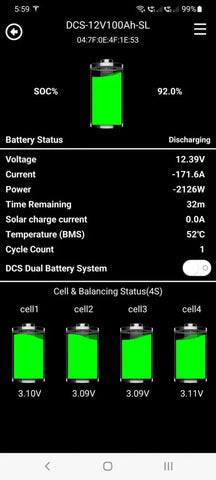

All DCS batteries now feature our comprehensive Bluetooth System available on both Android and Apple operating systems shows a lot of cool things.

– Cell status showing real time cell balancing operation
– BMS MOSFET temperature ( great info when your winching or running a large inverting load or your trolling motor to know how hard your pushing the electronics ).
– SOC% estimate (using impedance tracking – the App learns the SOC after the first 10 cycles)
– Battery pack voltage and cycle count
– Amp meter – showing charge and discharge current
– Connectivity distance up to 10m
– Now there is no need to install battery monitors or shunts in boats, campers or vehicles. You have all the info you need at your finger tip.
– The SOC estimate is accurate on single batteries, the more batteries that are expanded in parallel the less accurate the SOC becomes.
– This free application provides the perfect tell-tale about the battery packs state of health as it ages
– Assists installers & integrators to quickly diagnose any system issues



Notes

- All Lithium Batteries are classed as dangerous goods and can only be freighted via road freight.

- Comes with X4 fixing brackets

- Requires external DC/DC charger for vehicle applications. Check out our Redarc BCDC1225D for external/engine bay applications or Redarc BCDCN1225 for in vehicle applications.
