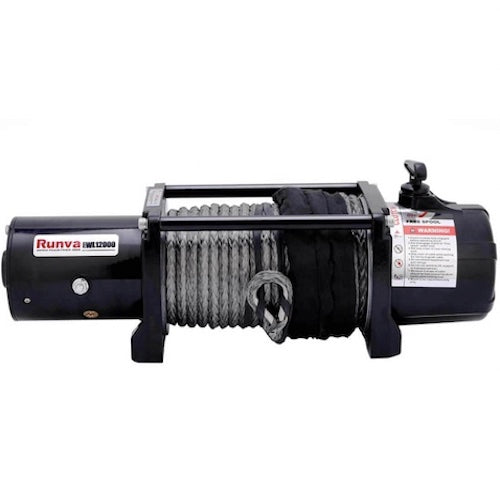

Runva EWL12000 12V With Synthetic Rope & Accessory Kit

Runva is a large international brand with an extensive distributor network set up in over 50 countries. Pioneers in winch manufacturing, the factory was established in 1997. Runva was the first professional winch manufacturer in China which has earned them a wealth of knowledge and experience. The large 36,000m2 factory is equipped with its’ own advanced Research and Development centre for careful product testing and development.

All winches are manufactured under strict quality control guidelines. With over 30 years experience in winch manufacturing, Runva is the brand that can offer you a reliable winch solution.

SPECS:

RATED LINE PULL - 12,000LB (5,443KG)

MOTOR - (12V) 4.6KW/6.1HP; (24V) 6.5KW/8.7HP

GEAR TRAIN - FULL STEEL 3 STAGE PLANETARY

GEAR RATIO - 265:1

CLUTCH TYPE - SLIDING RING GEAR

CLUTCH HANDLE POSITION - GEARBOX CAN BE ROTATED

BRAKE - AUTOMATIC LOAD HOLDING IN DRUM

CABLE TYPE - SYNTHETIC ROPE

CABLE SIZE - SYNTHETIC ROPE: 10MM X 25M

DRUM SIZE - 63MM X 223MM

MOUNTING BOLT PATTERN - 254MM X 114.3MM

OVERALL DIMENSIONS - 542MM X 160MM X 199MM

REMOTE CONTROL - HEAVY DUTY HANDHELD + WIRELESS

BATTERY LEADS - 2X 1.8M HEAVY DUTY LEADS

FINISH - BLACK POWDER COAT

WARRANTY - LIMITED 5 YEAR ELECTRICAL AND LIFETIME MECHANICAL WARRANTY

WHATS IN THE KIT:

-EWL12000 WINCH With Synthetic Rope

-Runva Control Box

-Wired and Wireless Remotes

-Winch Rope Hook

-Runva Alloy Fairlead

-Mains Battery Wiring

-Control Box Mounting Brackets
