TAG

TAG Adjustable Heavy Duty Tow Ball Mount - 90° Face, 50mm Square Hitch

TAG Adjustable Heavy Duty Tow Ball Mount - 90° Face, 50mm Square Hitch

Regular price $315.00 AUD
Regular price Sale price $315.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

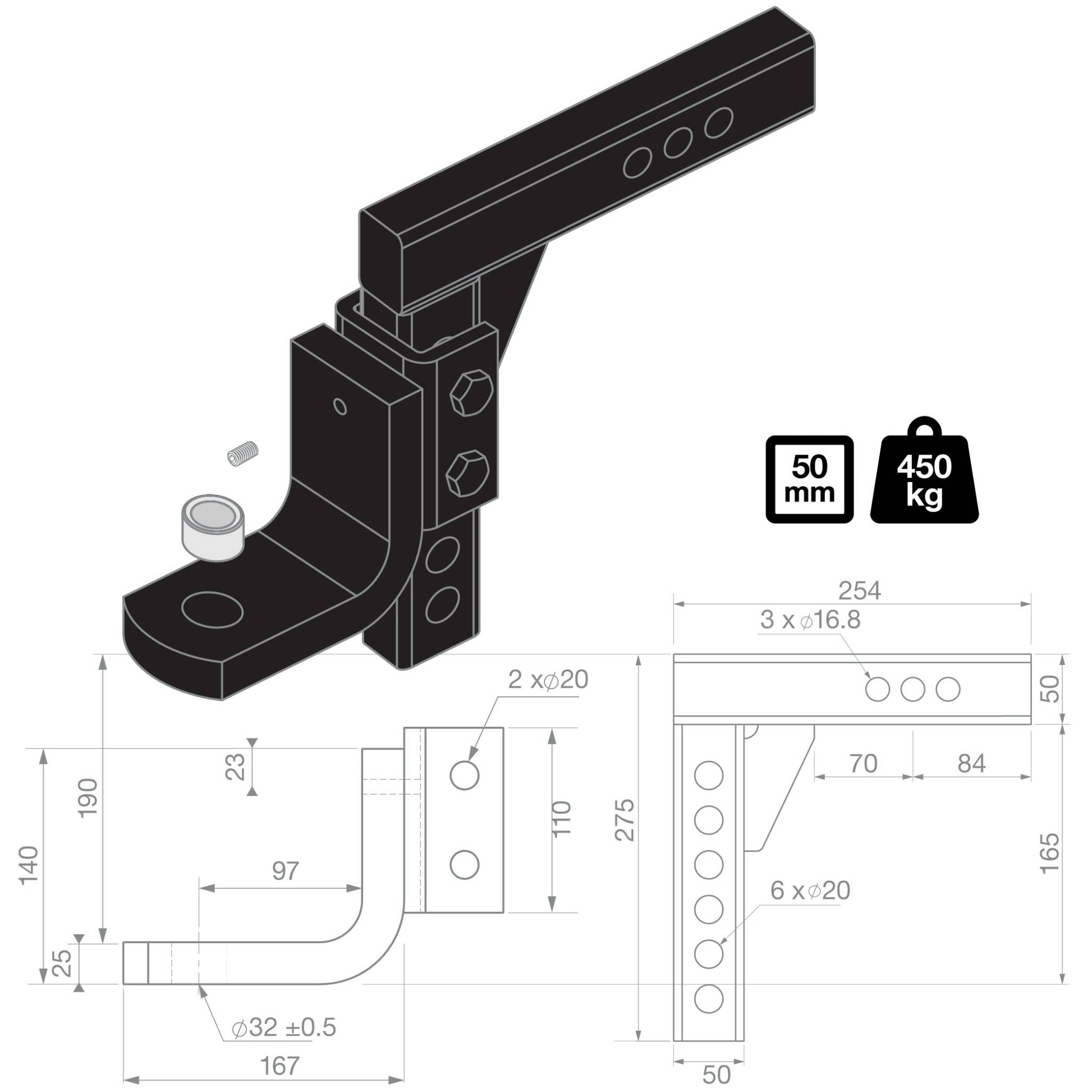

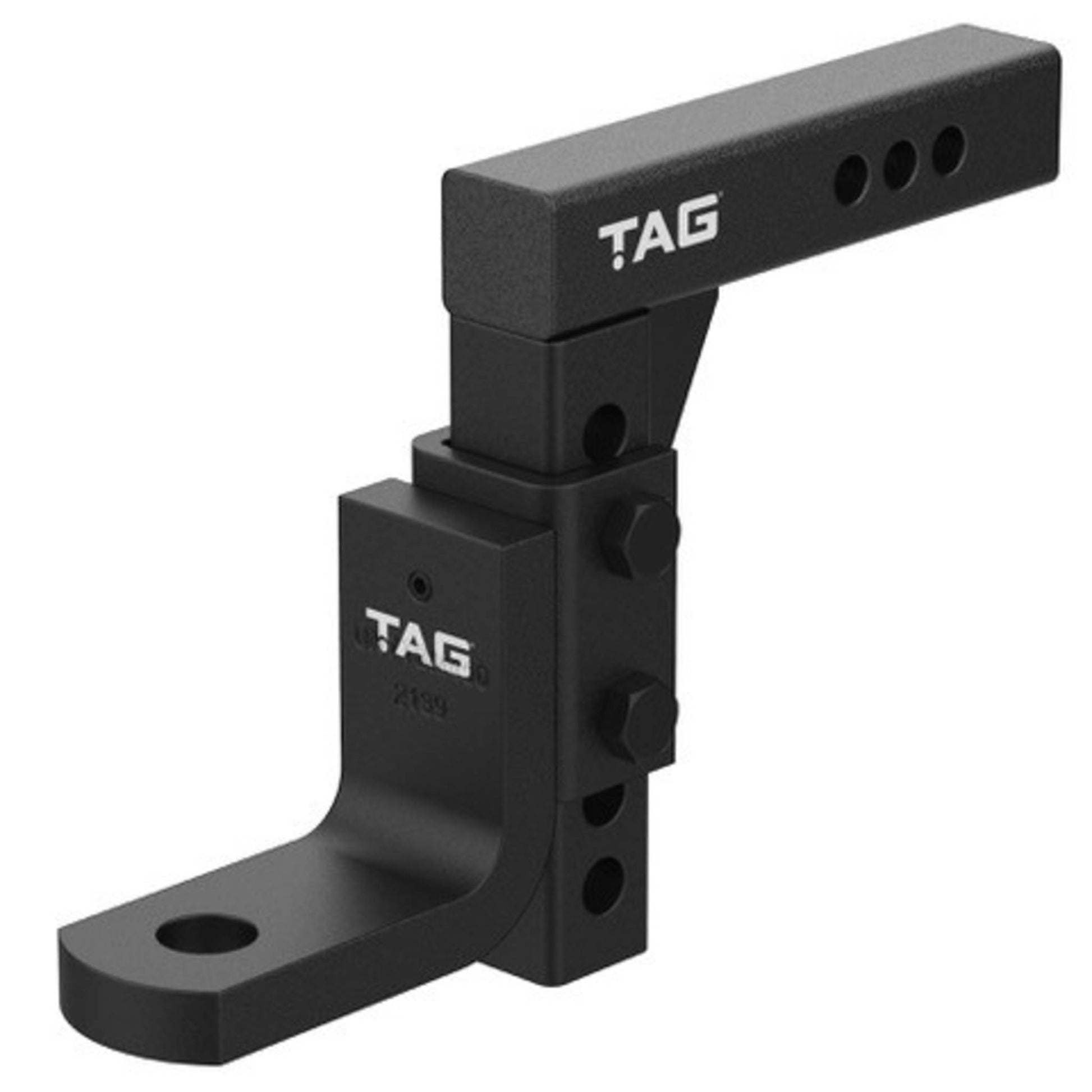

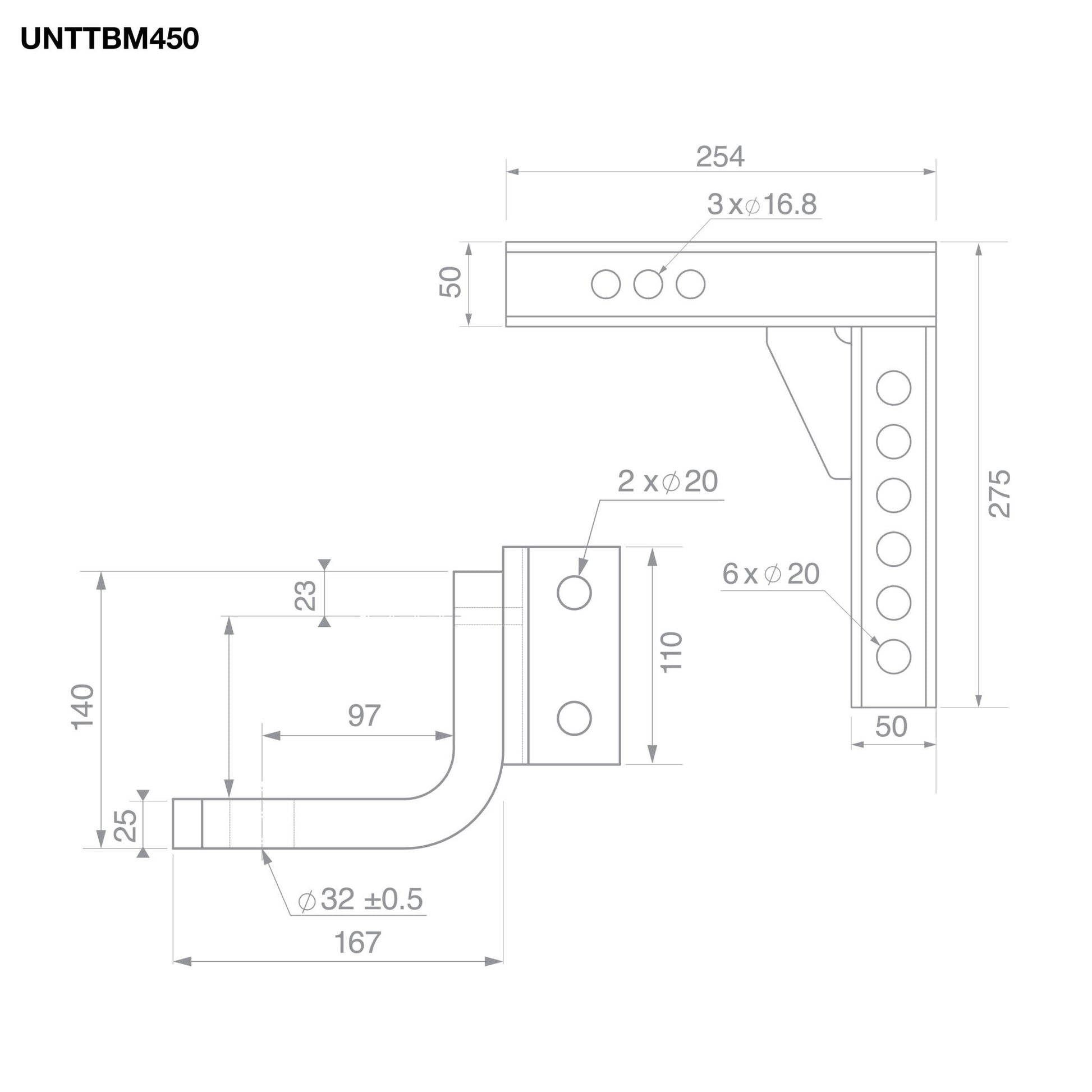

The TAG Adjustable Tow Ball Mount features a heavy-duty 50mm square shank with multiple pin holes for horizontal and vertical adjustment to suit your towing setup. For full compatibility, the unit includes a reducer allowing the use of a 70mm or 50mm tow ball. Made from solid steel with a durable powder-coated finish that resists rust, corrosion, and chipping.

  • 90° Separate Tongue Face with four adjustable positions.

  • Drop 115mm

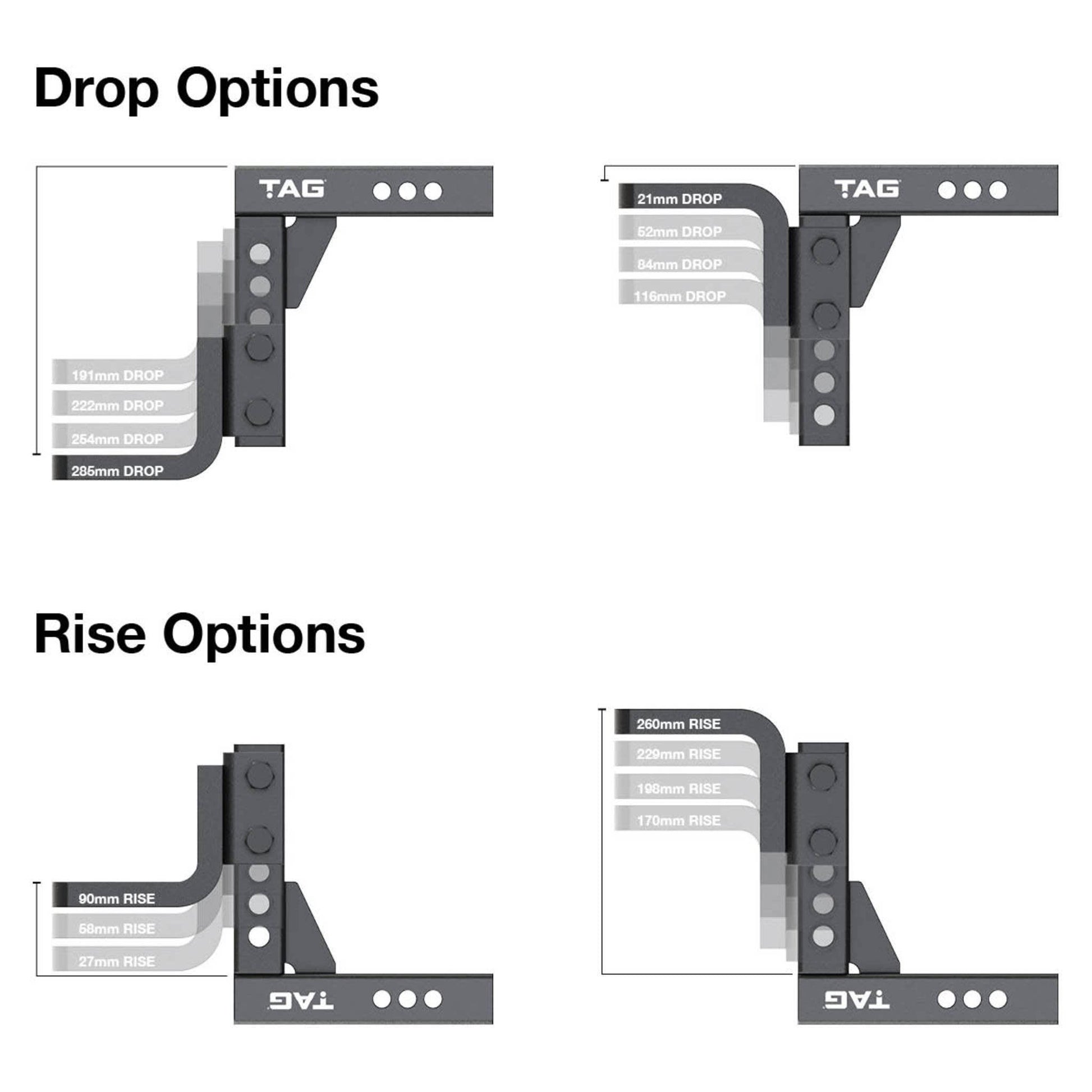

  • Can be mounted in Drop Mode or Rise Mode to raise or lower the tow ball

  • Fits 70mm tow ball (or 50mm tow ball using included reducer)

  • Gross Trailer Weight 4500kg (70mm Tow Ball) / 3500kg (50mm Tow Ball)

  • Ball Weight 450kg (70mm Tow Ball) / 350kg (50mm Tow Ball)

  • Durable Powder Coated Finish

  • ADR 62/02 Compliant

  • TAG Limited Lifetime Warranty

    Tow Ball, R-Clip & Hitch Pin are sold separately. Always check your vehicle and towbar's maximum towing capacity.

  • Ensure you tighten Allen key grub screw before main attachment bolts.

  • Torque spec on bolts that attach head to shank is 280nm.
